Combining strategies and indicators is always the right path towards a robust technical or quantitative trading system. In this article, the quest continues towards combining different elements in the hope of finding a reliable system. We will code and discuss the Simple Relative Strength Index and the Bollinger Bands so that they provide meaningful and intuitive signals.

As of now, the trading results will no longer be published due to it being a function of costs, slippage, the nature of the algorithms, risk management, and a plethora of other variables.

This can mislead the reader and therefore, I will only provide the functions for the indicators, their signals, and how to calculate returns as well as analyze them. The only spoon-feeding here will be presenting the indicator’s code and how to calculate the performance.

If you are also interested by more technical indicators and using Python to create strategies, then my latest book may interest you:

The Simple Relative Strength Index

The RSI is without a doubt the most famous momentum indicator out there, and this is to be expected as it has many strengths especially in ranging markets. It is also bounded between 0 and 100 which makes it easier to interpret. Also, the fact that it is famous, contributes to its potential.
This is because the more traders and portfolio managers look at the RSI, the more people will react based on its signals and this in turn can push market prices. Of course, we cannot prove this idea, but it is intuitive as one of the basis of Technical Analysis is that it is self-fulfilling.

The RSI is calculated using a rather simple way. We first start by taking price differences of one period. This means that we have to subtract every closing price from the one before it.

Then, we will calculate the smoothed average of the positive differences and divide it by the smoothed average of the negative differences. The last calculation gives us the Relative Strength which is then used in the RSI formula to be transformed into a measure between 0 and 100.

EURUSD hourly values in the first panel with the 14-period Standard RSI.

To calculate the Relative Strength Index, we need an OHLC array (not a data frame). This means that we will be looking at an array of 4 columns. The function for the Relative Strength Index is therefore:

def rsi(Data, lookback, close, where, width = 1, genre = 'Smoothed'):

    # Adding a few columns
    Data = adder(Data, 7)

    # Calculating Differences
    for i in range(len(Data)):

        Data[i, where] = Data[i, close] - Data[i - width, close]

    # Calculating the Up and Down absolute values
    for i in range(len(Data)):

        if Data[i, where] > 0:

            Data[i, where + 1] = Data[i, where]

        elif Data[i, where] < 0:

            Data[i, where + 2] = abs(Data[i, where])

    # Calculating the Smoothed Moving Average on Up and Down
    absolute values
    if genre == 'Smoothed':                          lookback = (lookback * 2) - 1 # From exponential to smoothed
      Data = ema(Data, 2, lookback, where + 1, where + 3)
      Data = ema(Data, 2, lookback, where + 2, where + 4)

    if genre == 'Simple':

      Data = ma(Data, lookback, where + 1, where + 3)
      Data = ma(Data, lookback, where + 2, where + 4)

    # Calculating the Relative Strength
    Data[:, where + 5] = Data[:, where + 3] / Data[:, where + 4]

    # Calculate the Relative Strength Index
    Data[:, where + 6] = (100 - (100 / (1 + Data[:, where + 5])))

    # Cleaning
    Data = deleter(Data, where, 6)
    Data = jump(Data, lookback)                        return Data

We need to define the primal manipulation functions first in order to use the RSI’s function on OHLC data arrays.

# The function to add a certain number of columns
def adder(Data, times):

    for i in range(1, times + 1):

        z = np.zeros((len(Data), 1), dtype = float)
        Data = np.append(Data, z, axis = 1)                return Data# The function to deleter a certain number of columns
def deleter(Data, index, times):

    for i in range(1, times + 1):

        Data = np.delete(Data, index, axis = 1)

    return Data# The function to delete a certain number of rows from the beginning
def jump(Data, jump):

    Data = Data[jump:, ]

    return Data

The Simple RSI is a simple change in the way the moving average is calculated inside the formula of the standard RSI. Instead of using a smoothed moving average as recommended by Wilder, we will use a simple moving average. Therefore, in the function provided above, we already have the choice and hence, we can write directly the following code:

my_data = rsi(my_data, 14, 3, 4, genre = 'Simple')# The 14 refers to the lookback period on the RSI
# The 3 refers to the closing prices on the OHLC array
# The 4 refers to the index of the column where the RSI will be put

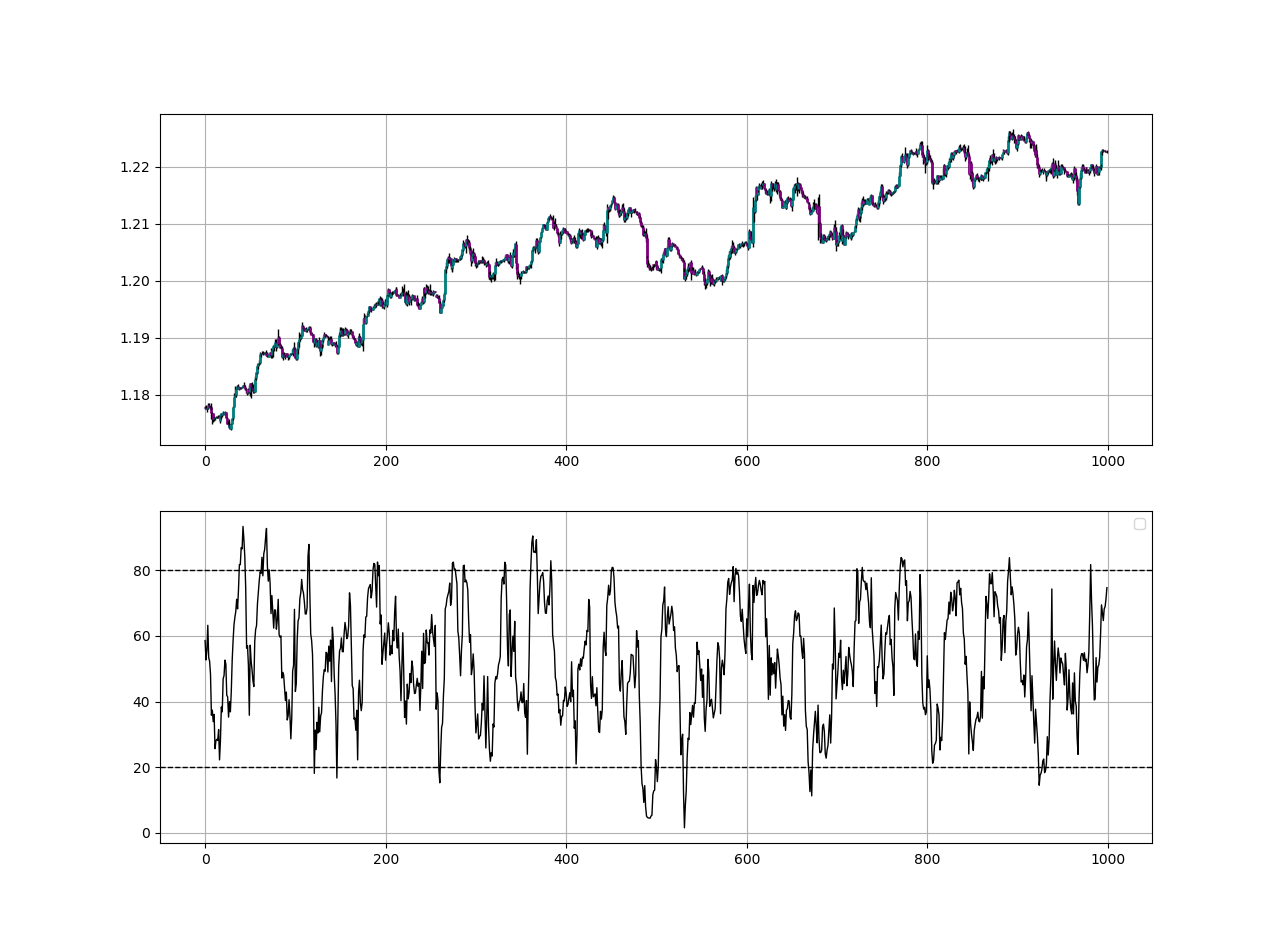

EURUSD hourly values in the first panel with the 14-period Simple RSI.

If you are interested by market sentiment and how to model the sentiment of institutional traders, feel free to have a look at the below article:

The Bollinger Bands

One of the pillars of descriptive statistics or any basic analysis method is the concept of averages. Averages give us a glance of the next expected value given a historical trend. They can also be a representative number of a larger dataset that helps us understand the data quickly.

Another pillar is the concept of volatility. Volatility is the average deviation of the values from their mean. Let us create the simple hypothetical table with different random variables.

Let us suppose that the above is a timely ordered time series. If we had to naively guess the next value that comes after 10, then one of the best guesses can be the average the data. Therefore, if we sum up the values {5, 10, 15, 5, 10} and divide them by their quantity (i.e. 5), we get 9. This is the average of the above dataset. In python, we can generate the list or array and then calculate the average easily:

# Importing the required library
import numpy as np# Creating the array
array = [5, 10, 15, 5, 10]
array = np.array(array)# Calculating the mean
array.mean()

Now that we have calculated the mean value, we can see that no value in the dataset really equals 9. How do we know that the dataset is generally not close to the dataset? This is measured by what we call the Standard Deviation (Volatility).

The Standard Deviation simply measures the average distance away from the mean by looping through the individual values and comparing their distance to the mean.

# Calculating the mean
array.std()

The above code snippet calculates the Standard Deviation of the dataset which is around 3.74. This means that on average, the individual values are 3.74 units away from 9 (the mean). Now, let us move on to the normal distribution shown in the below curve.

An example of the Normal Distribution Curve.

The above curve shows the number of values within a number of standard deviations. For example, the area shaded in red represents around 1.33x of standard deviations away from the mean of zero. We know that if data is normally distributed then:

About 68% of the data falls within 1 standard deviation of the mean.
About 95% of the data falls within 2 standard deviations of the mean.
About 99% of the data falls within 3 standard deviations of the mean.

Presumably, this can be used to approximate the way to use financial returns data, but studies show that financial data is not normally distributed but at the moment we can assume it is so that we can use such indicators. The flawness of the method does not hinder much its usefulness.

Now, with the information below, we are ready to start creating the Bollinger Bands indicator:

Financial time series data can have a moving average that calculates a rolling mean window. For example a 20-period moving average calculates each time a 20-period mean that refreshes each time a new bar is formed.
On this rolling mean window, we can calculate the Standard Deviation of the same lookback period on the moving average.

What are the Bollinger Bands? When prices move, we can calculate a moving average (mean) around them so that we better understand their position regarding their mean. By doing this, we can also calculate where do they stand statistically.

Some say that the concept of volatility is the most important one in the financial markets industry. Trading the volatility bands is using some statistical properties to aid you in the decision making process, hence, you know you are in good hands.

The idea of the Bollinger Bands is to form two barriers calculated from a constant multiplied by the rolling Standard Deviation. They are in essence barriers that give out a probability that the market price should be contained within them. The lower Bollinger Band can be considered as a dynamic support while the upper Bollinger Band can be considered as a dynamic resistance.

Hence, the Bollinger bands are simple a combination of a moving average that follows prices and a moving standard deviation(s) band that moves alongside the price and the moving average.

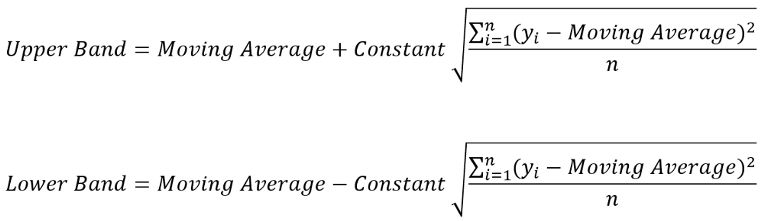

To calculate the two Bands, we use the following relatively simple formulas:

With the constant being the number of standard deviations that we choose to envelop prices with. By default, the indicator calculates a 20-period simple moving average and two standard deviations away from the price, then plots them together to get a better understanding of any statistical extremes.

This means that on any time, we can calculate the mean and standard deviations of the last 20 observations we have and then multiply the standard deviation by the constant. Finally, we can add and subtract it from the mean to find the upper and lower band.

Clearly, the below chart seems easy to understand. Every time the price reaches one of the bands, a contrarian position is most suited and this is evidenced by the reactions we tend to see when prices hit these extremes. So, whenever the EURUSD reaches the upper band, we can say that statistically, it should consolidate and when it reaches the lower band, we can say that statistically, it should bounce.

EURUSD with the 20-period Bollinger Bands.

To create the Bollinger Bands in Python, we need to define the moving average function, the standard deviation function, and then the Bollinger Bands function which will use the former two functions.

Consider an array containing OHLC data. We should define the following primal functions first and then we can code the Bollinger function

# The function to add a certain number of columns
def adder(Data, times):

    for i in range(1, times + 1):

        z = np.zeros((len(Data), 1), dtype = float)
        Data = np.append(Data, z, axis = 1)                       return Data# The function to deleter a certain number of columns
def deleter(Data, index, times):

    for i in range(1, times + 1):

        Data = np.delete(Data, index, axis = 1)                   return Data# The function to delete a certain number of rows from the beginning
def jump(Data, jump):

    Data = Data[jump:, ]

    return Data

Now, we have to add some columns to the OHLC array, define the moving average and the Bollinger functions, then finally, use them.

# Adding a few columns
Data = adder(Data, 20)def ma(Data, lookback, what, where):

    for i in range(len(Data)):
      try:
        Data[i, where] = (Data[i - lookback + 1:i + 1, what].mean())

            except IndexError:
                pass
    return Datadef volatility(Data, lookback, what, where):

    for i in range(len(Data)):
      try:
        Data[i, where] = (Data[i - lookback + 1:i + 1, what].std())

        except IndexError:
            pass

    return Datadef BollingerBands(Data, boll_lookback, standard_distance, what, where):

    # Calculating mean
    ma(Data, boll_lookback, what, where)                                # Calculating volatility
    volatility(Data, boll_lookback, what, where + 1)

    Data[:, where + 2] = Data[:, where] + (standard_distance *  Data[:, where + 1])
    Data[:, where + 3] = Data[:, where] - (standard_distance * Data[:, where + 1])

    return Data# Using the function to calculate a 20-period Bollinger Band with 2 Standard Deviations
Data = BollingerBands(Data, 20, 2, 3, 4)

If you are interested in seeing more technical indicators, feel free to check out the below article:

Creating the Signals

As with any proper research method, the aim is to test the strategy and to be able to see for ourselves whether it is worth having as an add-on to our pre-existing trading framework or not.

The first step is creating the trading rules. When will the system buy and when will it go short? In other words, when is the signal given that tells the system that the current market will go up or down?

The trading conditions we can choose are:

Go long (Buy) whenever the current close is at or below the 20-period lower Bollinger Band (with a 2 standard deviation) while simultaneously, the 14-period Relative Strength Index is at or below 25.
Go short (Sell) whenever the current close is at or above the 20-period upper Bollinger Band (with a 2 standard deviation) while simultaneously, the 14-period Relative Strength Index is at or above 75.

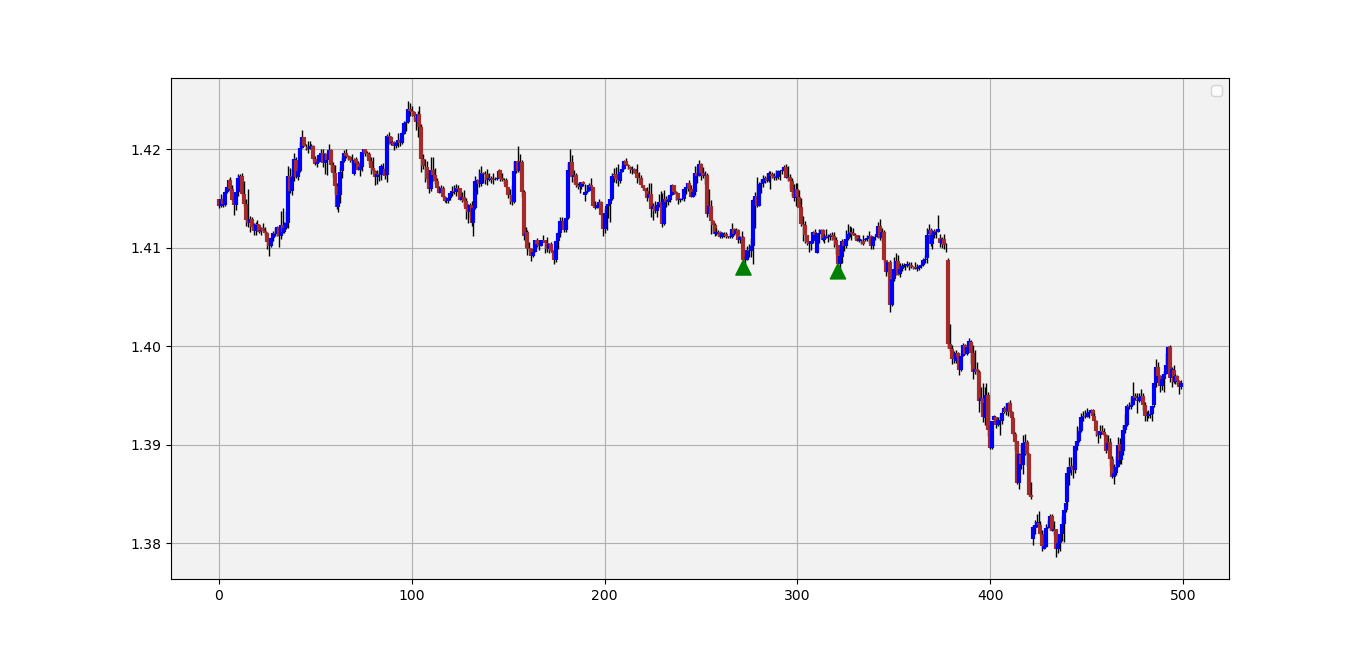

The above chart shows the signals generated from the system. We have to keep in mind the frequency of the signals when we are developing a trading algorithm. The signal function used to generate the triggers based on the conditions mentioned above can be found in this snippet:

def signal(Data, close, rsi_col, upper_boll, lower_boll, buy, sell):

    Data = adder(Data, 10)
    Data = rounding(Data, 5)

    for i in range(len(Data)):

        if Data[i, close] <= Data[i, lower_boll] and Data[i, rsi_col] < lower_barrier and Data[i - 1, buy] == 0:
            Data[i, buy] = 1

        elif Data[i, close] >= Data[i, upper_boll] and Data[i, rsi_col] > upper_barrier and Data[i - 1, sell] == 0:
            Data[i, sell] = -1

    return Data

Now, it is time to see the intuition of analyzing the strategy. Remember, no Back-testing results will be delivered anymore but the below will be much more helpful.

The Framework of Strategy Evaluation

Having had the signals, we now know when the algorithm would have placed its buy and sell orders, meaning, that we have an approximate replica of the past where can can control our decisions with no hindsight bias. We have to simulate how the strategy would have done given our conditions. This means that we need to calculate the returns and analyze the performance metrics.

This section will try to cover the essentials and provide a framework. We can first start with the simplest measure of all, the profit and loss statement. When we back-test our system, we want to see whether it has made money or lost money.

After all, it is a game of wealth. This can be done by calculating the gains and losses, the gross and net return, as well as charting the equity plot which is simply the time series of our balance given a perfect algorithm that initiates buy and sell orders based on the strategy. Before we see that, we have to make sure of the following since we want a framework that fits everywhere:

The above table says that we need to have the indicator or the signal generator at column 4 or 5 (Remember, indexing at Python starts at zero). The buy signal (constant = 1) at the column indexed at 6, and the sell short signal (constant = -1) at the column indexed at 7. This ensures the remainder of the code below works how it should work.

The reason for this is that on an OHLC data, we have already the first 4 columns occupied, leaving us 1 or 2 columns to place our Indicators, before having two signal columns. Using the deleter function seen above can help you achieve this order in case the indicators occupy more than 2 columns.

The first step into building the Equity Curve is to calculate the profits and losses from the individual trades we are taking. For simplicity reasons, we can consider buying and selling at closing prices. This means that when we get the signal from the indicator or the pattern on close, we initiate the trade on the close until getting another signal where we exit and initiate the new trade. In real life, we do this mainly on the next open, but generally in FX, there is not a huge difference. The code to be defined for the profit/loss columns is the below:

def holding(Data, buy, sell, buy_return, sell_return):for i in range(len(Data)):
        try:
            if Data[i, buy] == 1:
               for a in range(i + 1, i + 1000):
                  if Data[a, buy] != 0 or Data[a, sell] != 0:
                     Data[a, buy_return] = (Data[a, 3] - Data[i, 3])
                        break
                    else:
                        continue

            elif Data[i, sell] == -1:
               for a in range(i + 1, i + 1000):
                  if Data[a, buy] != 0 or Data[a, sell] != 0:
                    Data[a, sell_return] = (Data[i, 3] - Data[a, 3])
                        break
                    else:
                        continue
        except IndexError:
            pass# Using the function
holding(my_data, 6, 7, 8, 9)

This will give us columns 8 and 9 populated with the gross profit and loss results from the trades taken. Now, we have to transform them into cumulative numbers so that we calculate the Equity Curve. To do that, we use the below indexer function:

def indexer(Data, expected_cost, lot, investment):

    # Charting portfolio evolution
    indexer = Data[:, 8:10]

    # Creating a combined array for long and short returns
    z = np.zeros((len(Data), 1), dtype = float)
    indexer = np.append(indexer, z, axis = 1)

    # Combining Returns
    for i in range(len(indexer)):
        try:
          if indexer[i, 0] != 0:
             indexer[i, 2] = indexer[i, 0] - (expected_cost / lot)

          if indexer[i, 1] != 0:
             indexer[i, 2] = indexer[i, 1] - (expected_cost / lot)
        except IndexError:
            pass

    # Switching to monetary values
    indexer[:, 2] = indexer[:, 2] * lot

    # Creating a portfolio balance array
    indexer = np.append(indexer, z, axis = 1)
    indexer[:, 3] = investment

    # Adding returns to the balance
    for i in range(len(indexer)):

        indexer[i, 3] = indexer[i - 1, 3] + (indexer[i, 2])

    indexer = np.array(indexer)

    return np.array(indexer)# Using the function for a 0.1 lot strategy on $10,000 investment
expected_cost = 0.5 * (lot / 10000) # 0.5 pip spread
investment    = 10000
lot           = 10000
equity_curve = indexer(my_data, expected_cost, lot, investment)

The below code is used to generate the chart. Note that the indexer function nets the returns using the estimated transaction cost, hence, the equity curve that would be charted is theoretically net of fees.

plt.plot(equity_curve[:, 3], linewidth = 1, label = 'EURUSD)
plt.grid()
plt.legend()
plt.axhline(y = investment, color = 'black’, linewidth = 1)
plt.title(’Strategy’, fontsize = 20)

Now, it is time to start evaluating the performance using other measures.

I will present quickly the main ratios and metrics before presenting a full performance function that outputs them all together. Hence, the below discussions are mainly informational, if you are interested by the code, you can find it at the end.

Hit ratio       =  42.28 % # Simulated Ratio

The Hit Ratio is extremely easy to use. It is simply the number of winning trades over the number of the trades taken in total. For example, if we have 1359 trades over the course of 5 years and we have been profitable in 711 of them , then our hit ratio (accuracy) is 711/1359 = 52.31%.

The Net Profit is simply the last value in the Equity Curve net of fees minus the initial balance. It is simply the added value on the amount we have invested in the beginning.

Net profit      =  $ 1209.4 # Simulated Profit

The net return measure is your return on your investment or equity. If you started with $1000 and at the end of the year, your balance shows $1300, then you would have made a healthy 30%.

Net Return      =  30.01% # Simulated Return

A quick glance on the Average Gain across the trades and the Average Loss can help us manage our risks better. For example, if our average gain is $1.20 and our average loss is $4.02, then we know that something is not right as we are risking way too much money for way too little gain.

Average Gain    =  $ 56.95 per trade # Simulated Average Gain
Average Loss    =  $ -41.14 per trade # Simulated Average Loss

Following that, we can calculate two measures:

The theoretical risk-reward ratio: This is the desired ratio of average gains to average losses. A ratio of 2.0 means we are targeting twice as much as we are risking.
The realized risk-reward ratio: This is the actual ratio of average gains to average losses. A ratio of 0.75 means we are targeting three quarters of what we are risking.

Theoretical Risk Reward = 2.00 # Simulated Ratio
Realized Risk Reward    = 0.75 # Simulated Ratio

The Profit Factor is a relatively quick and straightforward method to compute the profitability of the strategy. It is calculated as the total gross profit over the total gross loss in absolute values, hence, the interpretation of the profit factor (also referred to as the profitability index in the jargon of corporate finance) is how much profit is generated per $1 of loss. The formula for the profit factor is:

Profit factor = 1.34 # Simulated Profit Factor — Profit factor = 1.34 **# Simulated Profit Factor**

Expectancy is a flexible measure presented by the well-known Laurent Bernut that is composed of the average win/loss and the hit ratio. It provides the expected profit or loss on a dollar figure weighted by the hit ratio. The win rate is what we refer to as the hit ratio in the below formula, and through that, the loss ratio is 1 — hit ratio.

Expectancy      =  $ 1.33 per trade # Simulated Expectancy

Another interesting measure is the number of trades. This is simply to understand the frequency of the trades we have.

Trades          = 3697 # Simulated Number

Now, we are ready to have all of the above metrics shown at the same time. After calculating the indexer function, we can use the below performance function to give us the metrics we need:

def performance(indexer, Data, name):

    # Profitability index
    indexer = np.delete(indexer, 0, axis = 1)
    indexer = np.delete(indexer, 0, axis = 1)

    profits = []
    losses  = []
    np.count_nonzero(Data[:, 7])
    np.count_nonzero(Data[:, 8])

    for i in range(len(indexer)):

        if indexer[i, 0] > 0:
            value    = indexer[i, 0]
            profits  = np.append(profits, value)

        if indexer[i, 0] < 0:
            value    = indexer[i, 0]
            losses   = np.append(losses, value)

    # Hit ratio calculation
    hit_ratio = round((len(profits) / (len(profits) + len(losses))) * 100, 2)

    realized_risk_reward = round(abs(profits.mean() / losses.mean()), 2)

    # Expected and total profits / losses
    expected_profits = np.mean(profits)
    expected_losses  = np.abs(np.mean(losses))
    total_profits    = round(np.sum(profits), 3)
    total_losses     = round(np.abs(np.sum(losses)), 3)

    # Expectancy
    expectancy    = round((expected_profits * (hit_ratio / 100)) \
                   - (expected_losses * (1 - (hit_ratio / 100))), 2)

    # Largest Win and Largest Loss
    largest_win = round(max(profits), 2)
    largest_loss = round(min(losses), 2)        # Total Return
    indexer = Data[:, 10:12]

    # Creating a combined array for long and short returns
    z = np.zeros((len(Data), 1), dtype = float)
    indexer = np.append(indexer, z, axis = 1)

    # Combining Returns
    for i in range(len(indexer)):
        try:
          if indexer[i, 0] != 0:
             indexer[i, 2] = indexer[i, 0] - (expected_cost / lot)

          if indexer[i, 1] != 0:
             indexer[i, 2] = indexer[i, 1] - (expected_cost / lot)
        except IndexError:
            pass

    # Switching to monetary values
    indexer[:, 2] = indexer[:, 2] * lot

    # Creating a portfolio balance array
    indexer = np.append(indexer, z, axis = 1)
    indexer[:, 3] = investment

    # Adding returns to the balance
    for i in range(len(indexer)):

        indexer[i, 3] = indexer[i - 1, 3] + (indexer[i, 2])

    indexer = np.array(indexer)

    total_return = (indexer[-1, 3] / indexer[0, 3]) - 1
    total_return = total_return * 100


    print('-----------Performance-----------', name)
    print('Hit ratio       = ', hit_ratio, '%')
    print('Net profit      = ', '$', round(indexer[-1, 3] - indexer[0, 3], 2))
    print('Expectancy      = ', '$', expectancy, 'per trade')
    print('Profit factor   = ' , round(total_profits / total_losses, 2))
    print('Total Return    = ', round(total_return, 2), '%')
    print('')
    print('Average Gain    = ', '$', round((expected_profits), 2), 'per trade')
    print('Average Loss    = ', '$', round((expected_losses * -1), 2), 'per trade')
    print('Largest Gain    = ', '$', largest_win)
    print('Largest Loss    = ', '$', largest_loss)
    print('')
    print('Realized RR     = ', realized_risk_reward)
    print('Minimum         =', '$', round(min(indexer[:, 3]), 2))
    print('Maximum         =', '$', round(max(indexer[:, 3]), 2))
    print('Trades          =', len(profits) + len(losses))# Using the function
performance(equity_curve, my_data, 'EURUSD)

This should give us something like the below:

-----------Performance----------- EURUSD
Hit ratio       =  42.28 %
Net profit      =  $ 1209.4
Expectancy      =  $ 0.33 per trade
Profit factor   =  1.01
Total Return    =  120.94 %
Average Gain    =  $ 56.95 per trade
Average Loss    =  $ -41.14 per trade
Largest Gain    =  $ 347.5
Largest Loss    =  $ -311.6Realized RR     =  1.38
Minimum         = $ -1957.6
Maximum         = $ 4004.2
Trades          = 3697# All of the above are simulated results and do not reflect the presented strategy or indicator

Conclusion & Important Disclaimer

Remember to always do your back-tests. You should always believe that other people are wrong. My indicators and style of trading may work for me but maybe not for you.

I am a firm believer of not spoon-feeding. I have learnt by doing and not by copying. You should get the idea, the function, the intuition, the conditions of the strategy, and then elaborate (an even better) one yourself so that you back-test and improve it before deciding to take it live or to eliminate it.

My choice of not providing Back-testing results should lead the reader to explore more herself the strategy and work on it more. That way you can share with me your better strategy and we will get rich together.

To sum up, are the strategies I provide realistic? Yes, but only by optimizing the environment (robust algorithm, low costs, honest broker, proper risk management, and order management).

Are the strategies provided only for the sole use of trading? No, it is to stimulate brainstorming and getting more trading ideas as we are all sick of hearing about an oversold RSI as a reason to go short or a resistance being surpassed as a reason to go long. I am trying to introduce a new field called Objective Technical Analysis where we use hard data to judge our techniques rather than rely on outdated classical methods.
